ELECTRODE
This electrode was primarily designed to provide good wetting and shallow penetration for thin sheet metal applications (using smaller diameter electrodes), but with sufficient penetration for welding medium gauge steel. As a result, E6013 is an allpurpose electrode that provides a soft steady arc which is easily regenerated, easy slag control for vertical-down welding, low spatter and a beautiful bead appearance. E6013 electrodes may be used in any position with AC or DC (straight or reverse polarity).
* Good weld penetration, low spatter, easy slag removal
* Tensile strength: 60000 lb.
* Ideal general purpose welding rod
* Melting point (degF) 250-2730 °F
E6013 electrode is commonly used for automobile bodies, truck frames and bodies, ornamental iron, metal furniture, farm implementations, machinery guards, storage tanks, or wherever appearance is important or desirable.

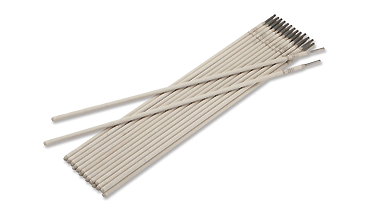

* Electrode 2,5 (3/32’’) x 300mm – 2,5 kg
* Electrode 3,2 (1/8’’) x 350mm – 5 kg
* Electrode 4,0 (5/32’’) x 400mm – 5 kg
